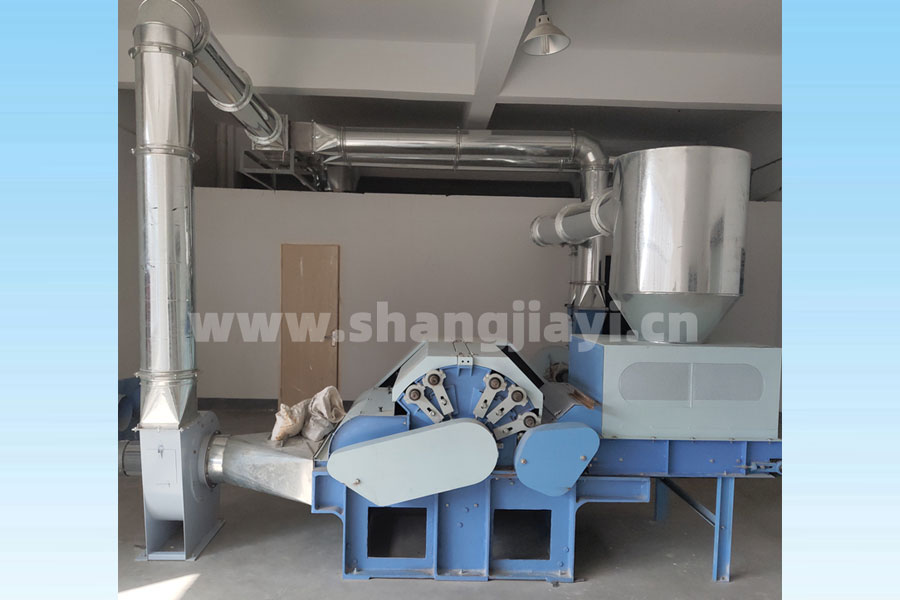

Use：It is used for opening and mixing fiber raw materials, and also has the effect of removing impurities. For spinning and making non-woven fabrics.
Features:
1.It is suitable for opening, mixing, dusting and removing impurities of cotton, wool, chemical fiber and other fibers.
2.It has a grill-type drain bottom, which can effectively remove impurities such as grass seeds in wool.
3.Special cast teeth, no damage to fibers.
4.Equipped with a fan, which is output by the fan.
Main technical parameters：
|
Machine Type |
Left Hand |
||
|
Working Width |
900mm |
||
|
Dimension |
Main Engine |
2315mm*1650mm*1250mm |
|
|
Weight |
About 2 Tons |
||
|
Power/Speed |
Main Engine |
5.5kw |
730r/min |
|
Fan |
4kw |
1400r/min |
|
|
Refueling Device |
1.1kw |
1440r/min |
|
|
Feeding Form |
Feeding Flat Curtain |
||
|
Diameter/Speed |
Feed Roller |
120mm |
21r/min |
|
Cylinder |
650mm |
347r/min |
|
|
Doffer |
400mm |
834r/min |
|
|
Working Roller |
158mm |
18r/min |
|
|
Stripping Roller |
120mm |
22r/min |
|
