Wool spinning equipment

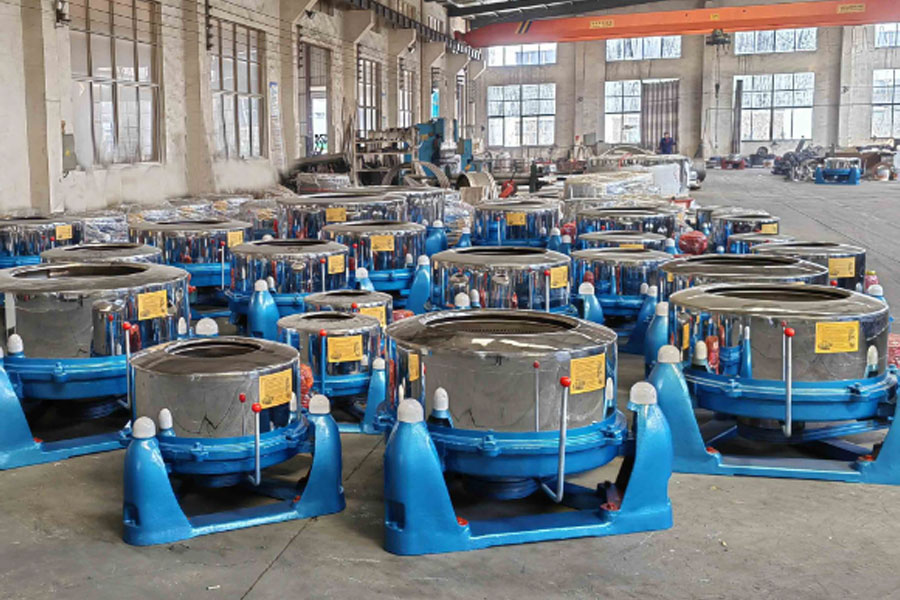

BXG02 Industrial dehydrator

Use：The industrial dehydrator uses the rotation of the inner tank to throw the liquid out of the mesh of the inner tank under the action of centrifugal force, thereby separating the solid and liquid to achieve the purpose of dehydration.

Features:
1. Various specifications to meet user output needs.
2. Independent machine, easy to operate and no installation required.
3. Stainless steel inner tank, effectively prevents corrosion, reduces wear on materials during dehydration, and is durable.

Main technical parameters：

Model	BXG02-25	BXG02-40	BXG02-80	BXG02-130	BXG02 -220	BXG02-300	BXG02-550	BXG02-900	BXG02-1200
Capacity	25kg	40kg	80kg	130kg	220kg	300kg	550kg	900kg	1200kg
Rotating Speed	1050 r/min	900 r/min	900 r/min	900 r/min	760 r/min	750 r/min	550 r/min	500 r/min	480 r/min
Drum Size	Φ500 *240 mm	Φ600 *290 mm	Φ800 *340 mm	Φ1000 *370 mm	Φ1200 *490 mm	Φ1200 *560 mm	Φ1500 *660 mm	Φ1800 *760 mm	Φ2000 *860 mm
Dimensions	1000* 760* 600 mm	1200* 950* 700mm	1400* 1200* 810 mm	1700* 1600* 860 mm	2100* 1650* 1050 mm	1700* 1750* 1050 mm	2200* 2300* 1350 mm	2400* 2500* 1650 mm	2500* 2600* 1750 mm
Power	1.5kw	2.2kw	4kw	5.5kw	7.5kw	7.5kw	10kw	15kw	18.5kw
Total Weight	206kg	368kg	648kg	1006kg	1568kg	1600kg	2280kg	3400kg	4400kg
Power Supply	Match the user's power supply
