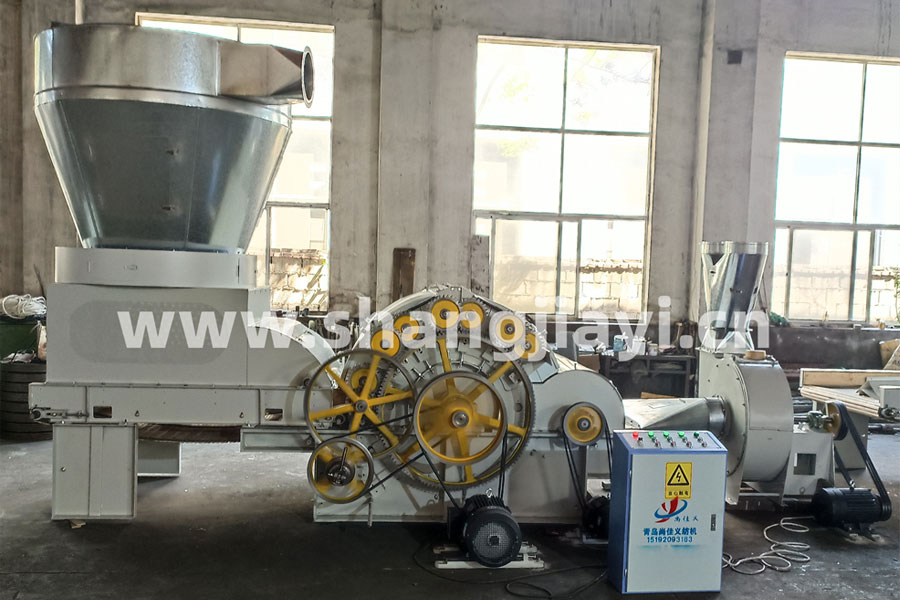

Use：It is used for opening and mixing fiber raw materials, and also has the effect of removing impurities. For spinning and making non-woven fabrics.
Features:
1.It is suitable for opening, mixing, dusting and removing impurities of cotton, wool, chemical fiber and other fibers.
2.It has a grill-type drain bottom, which can effectively remove impurities such as grass seeds in wool.
3.Special cast teeth, no damage to fibers.
4.Equipped with a fan, which is output by the fan.
Main technical parameters：
|
Machine Type |
Left Hand |
||
|
Working Width |
1200mm |
||
|
Output |
1500kg/h（Max） |
||
|
Dimension |
Main Engine |
3920mm*2610mm*1800mm |
|
|
Weight |
4.8 Tons |
||
|
Power/Speed |
Cylinder |
7.5kw |
720r/min |
|
Doffer |
4kw |
1140r/min |
|
|
Fan |
5.5kw |
1440r/min |
|
|
Refueling Device |
1.1kw |
1440r/min |
|
|
Feeding Form |
Flat curtain feeding/Fan cyclone dust cage feeding |
||
|
Diameter/Speed |
Feed Roller |
120mm |
21r/min |
|
Cylinder |
1064mm |
227r/min |
|
|
Doffer |
586mm |
880r/min |
|
|
Working Roller |
178mm |
18r/min |
|
|
Stripping Roller |
158mm |
22r/min |
|
