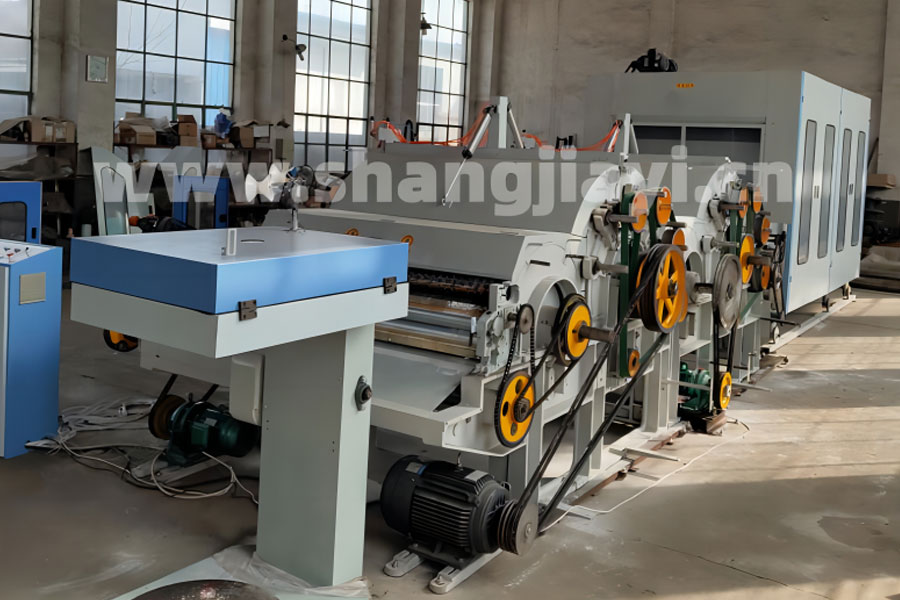

Use：This machine uses the surface linear speed between the cylinder, work roller, delinting roller and doffer. The needle direction and steering of the card clothing are different. During operation, the fiber raw materials are mixed, opened and carded to make a certain weight sliver. And it is regularly circled in the can for use in the next process.
Features:
1.Wide range of applicable fibers.
2.The unique static elimination device allows this machine to effectively card 1313 aramid and make slivers.
Main technical parameters：
| Type |
Upward half-circle combing |
|
Working width |
1550mm |
|
Applicable raw material range |
25-127mm，1-30D |
|
Feeding method |
Volumetric photoelectric control automatic continuous feeding |
|
Sliver weight |
7-25g/m |
|
Output |
65-240kg/h |
|
Total draft ratio |
32-133.5 |
|
Cylinder speed |
300 rpm |
|
Doffer speed |
30-66 rpm |
|
Motor Power |
12.35kw |
|
Dimensions |
11050*2300*2400mm |
|
weight |
16t |
