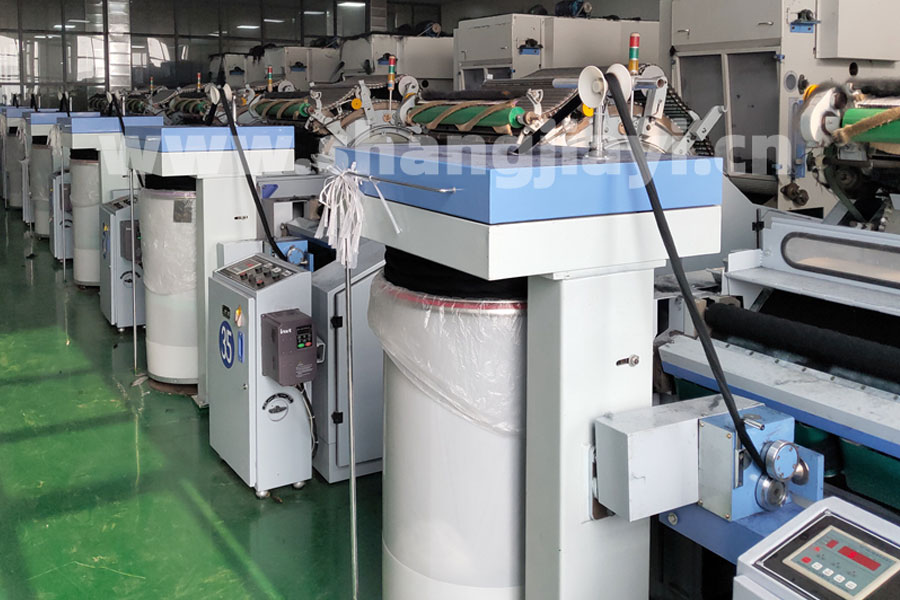

FB220 multi-component fiber sliver making machine

Use：This machine is suitable for carefully opening natural fibers such as wool, cotton, silk, and linen, as well as man-made fibers such as Tencel, viscose, alginic acid, and chitosan using the carding action of cylinders, rollers, and cover plates. , carding, impurity removal, and polymerization into slivers of a certain weight for use in the drawing process.
After removing the coiler, it can be used as the final finer opening of the hemp fiber opening production line. After opening, it is driven by air flow and transported to the rolling machine for rolling.

Features:
1.The machine adopts a combined structure of double cylinder, roller carding and flat carding in terms of technology, and is equipped with special metal card clothing to achieve low damage, high output and fine carding. It is especially suitable for carding various high-end and precious fibers.
2.Use a high-precision volumetric automatic wool feeding machine to make feeding even and more accurate.
3. Use double roller feeding to reduce fiber damage.
4.The stepped pressure roller makes the surface of the strip smooth and clean; there are air wing structures on both sides of the cylinder body to eliminate fiber accumulation.
5.The multi-station automatic barrel changing device reduces the labor intensity of workers (single barrel can be equipped).
6.The whole machine adopts PLC control, frequency conversion, touch screen, and self-levelling, making the whole machine highly electromechanical integrated.
7.The whole machine is equipped with a semi-enclosed cover, which is beautiful and easy to maintain.
8.In addition to being suitable for cashmere and wool fibers, this machine is also suitable for carding and making strips of multi-component fibers. In particular, the damage of pure cashmere fiber strips is 1-2 mm, and the carding of mercerized wool can be close to zero damage.

Main technical parameters：
