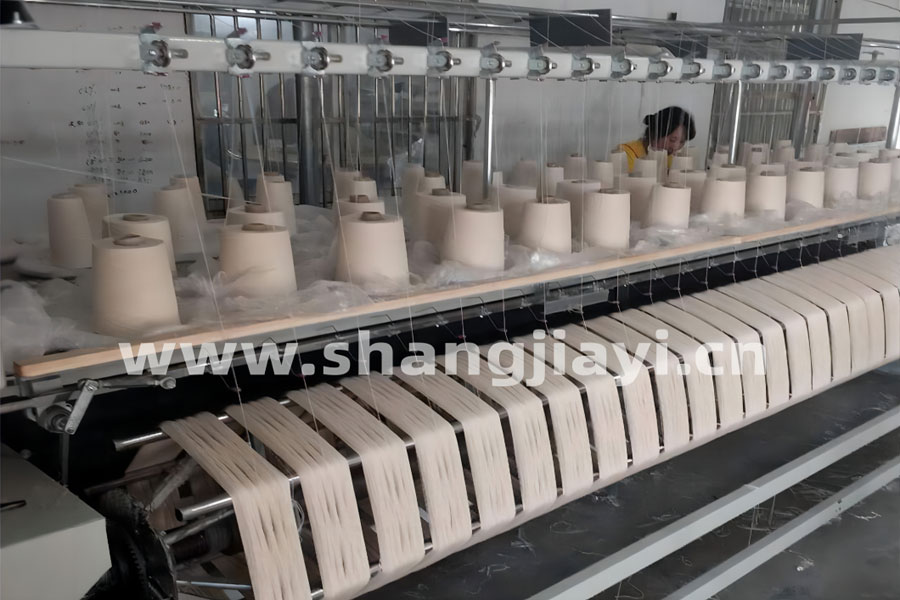

233 Reeling machine

Use：This machine is a special equipment for yarn skeining.

Features:
1. The creel wrapping angle is adjustable, the creel back pressure is adjustable, and a pneumatic package weight balance device is adopted to keep the pressure constant and the winding density of the inner and outer yarn layers to be uniform.
2. The forming part is equipped with a yarn protection device, which can effectively prevent single yarns from drifting outside the range of the grooved drum lead during operation, and protects the stable tension at the top of the lead, making it less likely to cause netting at both ends of the winding. At the same time, it can prevent single yarn from drifting to the motor shaft and causing shaft winding.
3. This model can be equipped with 0°, 3°30', 4°20', 5°57', 9°15' (diameter 95 two-turn large barrel) chromium-plated zinc alloy grooved barrel or high wear resistance and corrosion resistance High bonding nickel-phosphorus alloy tank barrel.
4. It is driven by a DC brushless long-axis motor, which is energy-saving. The winding and spindle transmission are controlled by independent motors.
5. The winding and spindle transmission are synchronized to avoid twist differences, and the twist can be adjusted arbitrarily between 10-500 twists.

Main technical parameters：
