Use：It is used to double 2 to 12 strands of yarn into 1 bobbin, which is suitable for cotton linen, fur, polyester and blending
Features:

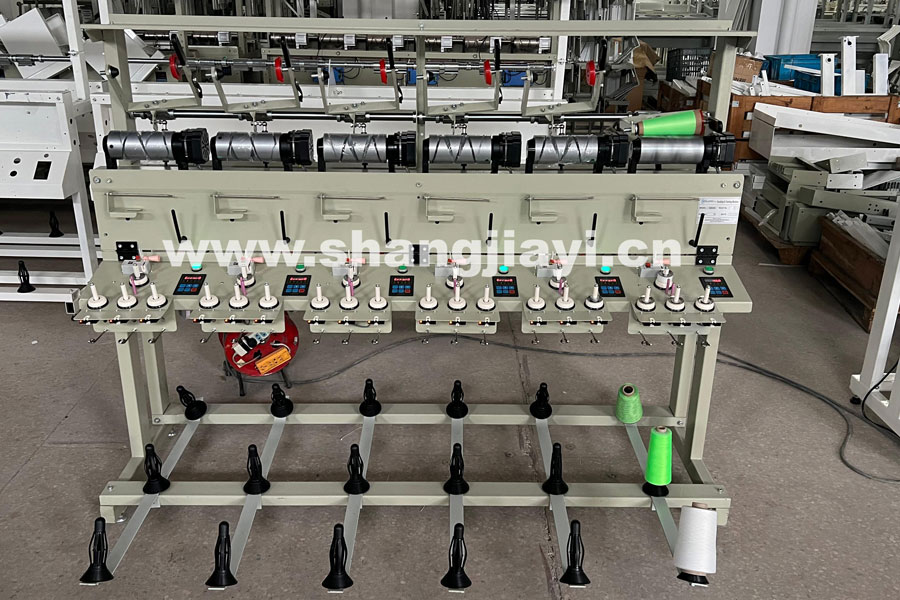

1.This kind of machine has 4 or 6 spindles each side, it is easy to install.
2.Double points waxing system with micro motors, waxing steady and uniform. The forming of cheese is better.
3.Using high quality alloy drums with optimized groove shape, which has the advantages of good anti-overlapping characteristics, light weight, good wear resistance, and static elimination.
4.Single winding motor control for each spindle, electronic fixed-length, and single spindle automatic stop while yarn breaking or fully filled.
5.High-speed creel with gas spring,which can keep constant winding pressure.This creel is stable and reliable.
Main technical parameters：
| Mechanical speed |
Up to 800m/min (process speed depending on quality of yarn and feed packages) |
|
NO.of yarns |
2-12 stands of yarns |
|
Way of anti-overlapping |
Frequency conversion |
|
Package bobbin |
0° |
|
Package diameter |
330mm |
|
Package weight |
10kg |
|
Yarns / count |
Cotton. flax,wool, silk, chemical fiber/Ne 6-180 |
|
Tension system |
Each spindle has a yarn tensioner And a waxer |
|
Auto stop while yarn break |
With electronic yarn sensor, the machine will stop when yarn break |
|
Automatic length fixing |
Automatic length fixing,max:999999m |
|
Slow start |
For smooth start and better winding quality, supporting individual slow start for each spindle |
|
Power |
6 inch installed power:100W/spindle |
|
Dimensions |
4spindle 1270*408*1550mm |
|
Weight |
6 inch 4 spindles 99kg |
