Quilt production equipment

  • TH01 Opening and carding all-in-one machine
  • TH01 Opening and carding all-in-one machine
  • TH01 Opening and carding all-in-one machine
TH01 Opening and carding all-in-one machineTH01 Opening and carding all-in-one machineTH01 Opening and carding all-in-one machine

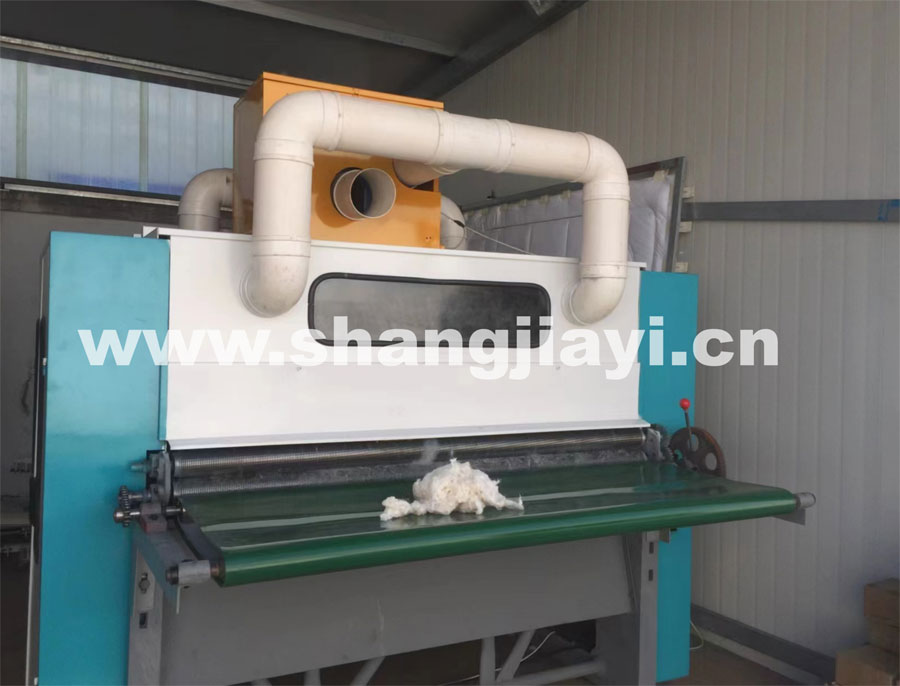

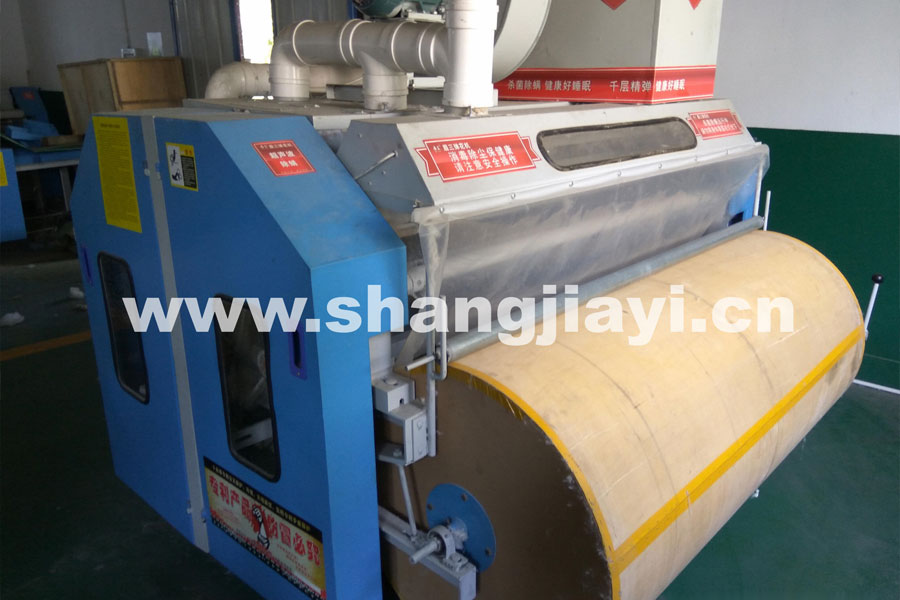

TH01 Opening and carding all-in-one machine

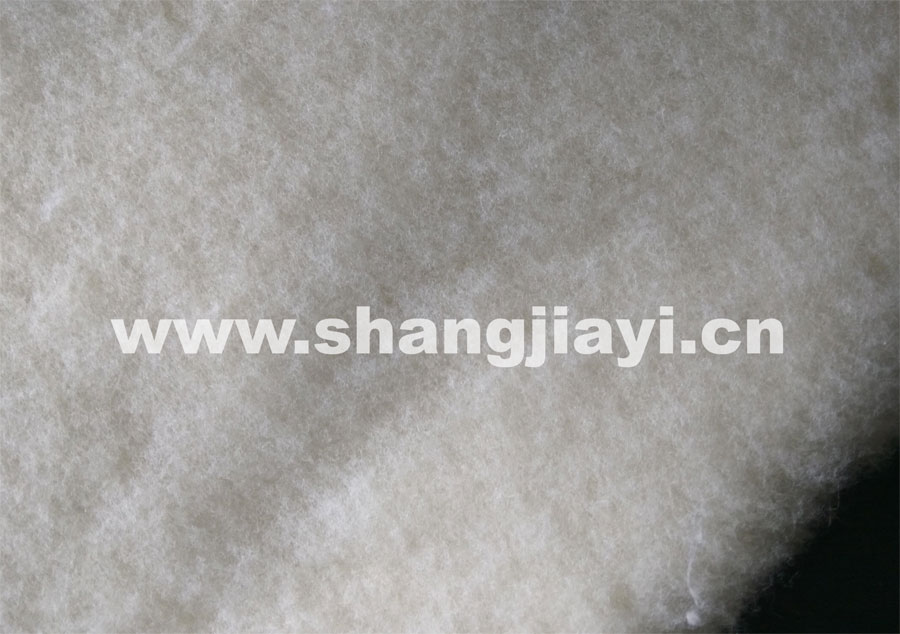

Use:It is used to comb single or mixed fibers of a certain proportion such as cotton, wool, linen, and chemical fibers that can adapt to this machine. The above fibers are opened, impurities removed, carded, and rolled into rolls to make various types of quilts.

Features:
1.During the production process, remove some broken seeds, neps, impurities, short lint, dust and other harmful substances in raw materials from cotton, wool and other fibers.
2.The fiber damage is small, the fibers of the produced batt adhere to each other smoothly and evenly, and the produced batt is not easy to separate.

Main technical parameters:

Output

1-100kg/h

Working width

1700/2000mm

Feeding method

Transmission flat belt automatic continuous feeding

Motor Power

10.5kw

Dimensions

2400/2700*3100*2300 mm

Weight

1500kg
