Use：This machine is suitable for processing various grades of raw cotton or chemical fibers with a length of less than 76mm. The fibers are transported by airflow, and small pieces of raw materials are further opened through opening and carding by beaters; impurities are removed through dust removal knives and dust cages, and then It is transported to the next unit by air flow.
Features：

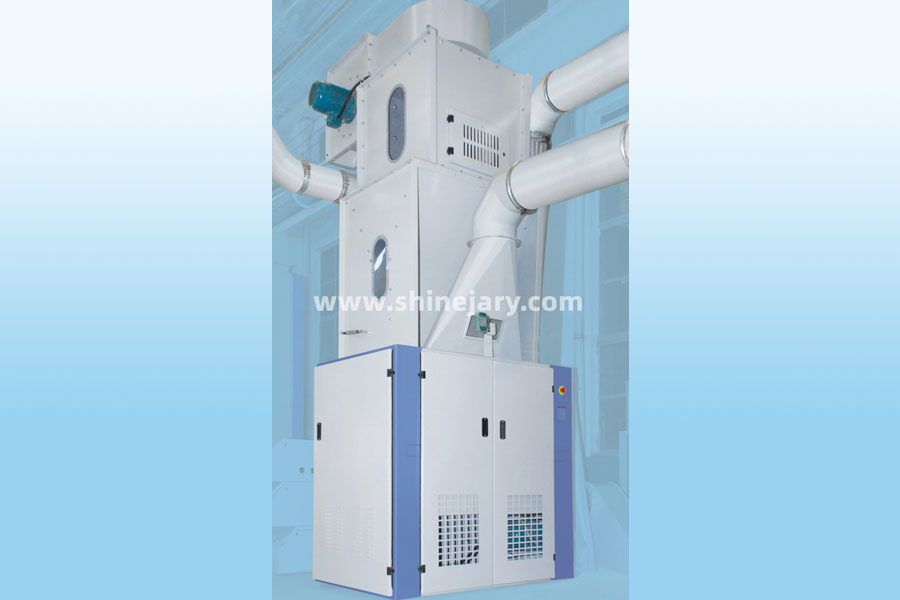

The machine consists of cotton loading box parts, cotton feeding parts, beater parts, dust rod adjusting parts, and frame parts. It is used in conjunction with the cotton condenser in the blowroom process. Its beater separates dust and impurities through the combined action of centrifugal force and dust rods at a certain rotation speed, and sends the raw materials that have been fully opened and impurity removed to the next process. The separated dust enters the dust filter system.
Main technical parameters：
| Model |
SJY117A |
|
Output |
800-1000kg/h |
|
Working width |
1060mm |
|
Power |
3.75kw |
|
Overall dimensions(L*W*H) |
1636*1580*2875mm |
|
Net weight |
1800kg |
