Use：

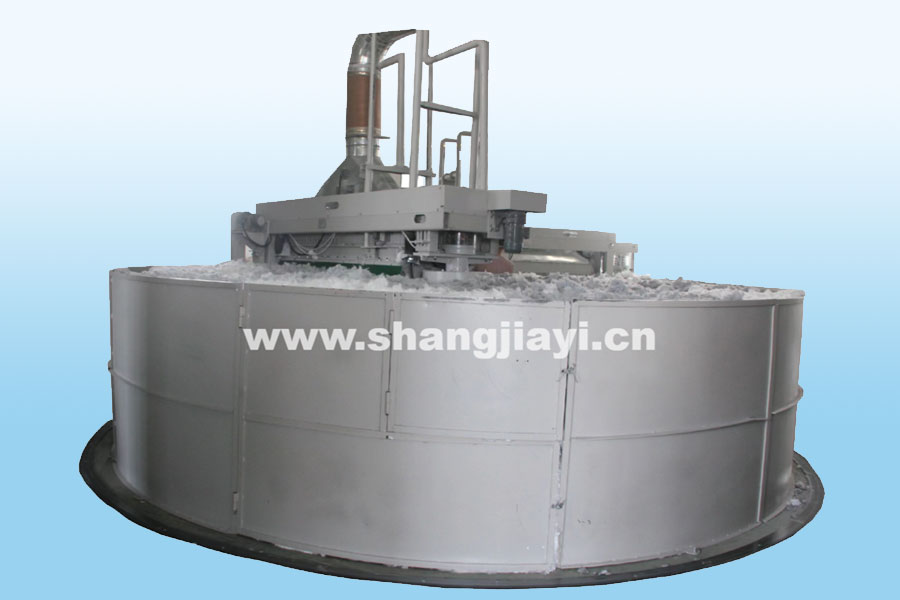

This machine is the first process of opening and cleaning cotton. It is suitable for grabbing various grades of raw cotton and chemical fibers below 76mm, and transporting them to the next unit through air flow.
Features：
The machine uses a serrated blade beater, which is divided into three groups from the inside to the outside from thin to dense, so that the captured fiber bundles are small and uniform, which is beneficial to the mixing and impurity removal in subsequent processes.Compared with SJY002D, it has a larger diameter, can store more cotton bales, and has higher output.
Main technical parameters：
| Output |
1000kg/h |
|
Loading capacity |
3500kg |
|
Beater width |
2335mm |
|
Beater speed |
740 or 900rpm |
|
Revolving speed of carriage |
1.7，2.3rpm |
|
Blade extension from rib |
2.5~7.5mm |
|
Total power |
5.5Kw |
|
Rail diameter |
6246mm |
|
Total height |
4125mm |
|
Total weight |
2500kg |
